Een kaart van je hart: hoe AI elektrische signalen kan gebruiken om hartritmestoornissen beter te begrijpen
Volgens de European Society of Cardiology zal 1 op de 3 mensen ooit een mogelijk dodelijke hartritmestoornis krijgen. Zo'n stoornis ontstaat wanneer de elektrische signalen in het hart zich niet meer normaal verspreiden, waardoor het hart niet meer efficiënt kan pompen. Dit wordt vaak getriggerd door bijvoorbeeld alcoholgebruik of stress.

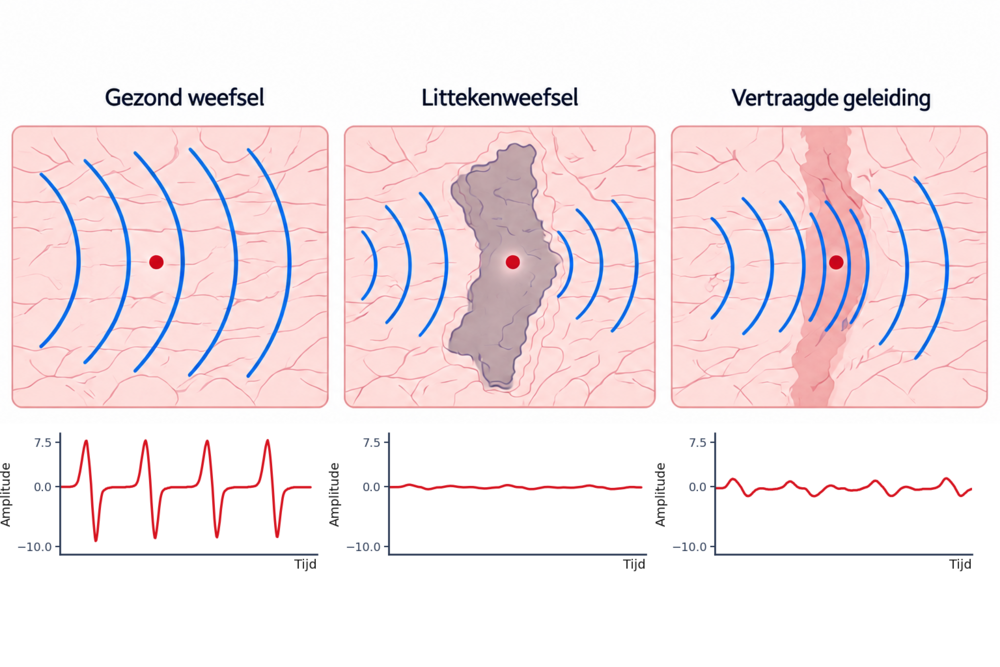

Bij hartritmestoornissen wordt de elektrische activiteit in het hart vertraagd of volledig geblokkeerd. Een volledige blokkade en een vertraging vereisen een andere behandeling, maar de kaarten die cardiologen vandaag gebruiken, kunnen dit onderscheid moeilijk maken. In mijn masterthesis onderzocht ik via simulaties of de elektrische signalen in het hart voldoende informatie bevatten om dit onderscheid wél te maken.
Wat gebeurt er bij een hartritmestoornis?
Elektrische signalen zorgen ervoor dat de hartspier op het juiste moment samentrekt. Wanneer deze signalen vertraagd worden of vastlopen, kan het hartritme verstoord raken. Zo kan een elektrisch signaal bijvoorbeeld rond een zone van aangetast weefsel blijven ronddraaien, waardoor het hart niet meer normaal samentrekt. Dit aangetast weefsel kan ontstaan door bijvoorbeeld een eerder hartinfarct, hoge bloeddruk of veroudering. Daarbij kan de elektrische geleiding sterk vertragen of zelfs worden geblokkeerd. Het is daarom belangrijk om niet alleen te weten waar het aangetaste weefsel zich bevindt, maar ook hoe sterk de elektrische geleiding er verstoord is.
Een blinde vlek in huidige kaarten

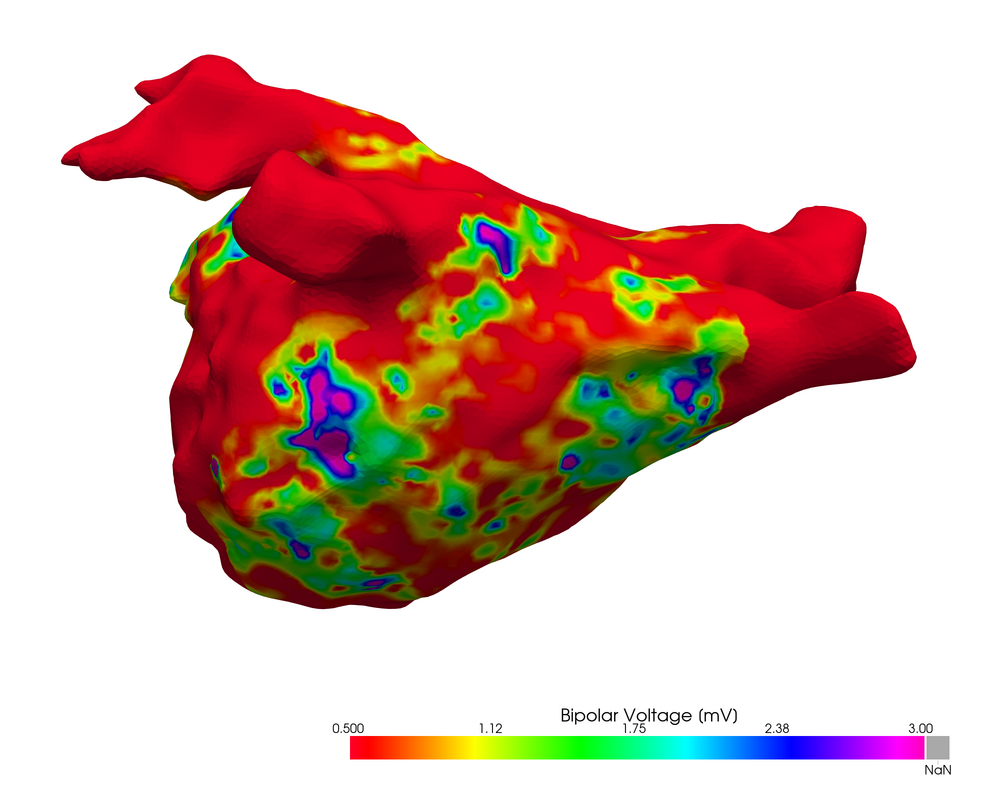

Om hartweefsel in kaart te brengen, gebruiken cardiologen vandaag voltagekaarten die tonen hoe sterk de spanning op elke plaats in het hart is. Zowel trage geleiding als littekenweefsel verzwakken de spanning echter op een vergelijkbare manier, waardoor een arts met een voltagekaart alleen moeilijk kan zien of weefsel nog te behandelen of al afgestorven is.
Mijn hypothese is dat je dit onderscheid wél kan maken door niet enkel naar de spanning te kijken, maar ook andere signaalkenmerken in rekening te brengen. Als deze kenmerken voldoende informatie bevatten om de lokale snelheid van het elektrische signaal te berekenen, kan je in plaats van een voltagekaart een 'snelheidskaart' maken die de geleidingssnelheid op elke plaats in het hart weergeeft. Dit zou een nieuwe kaart van het hart zijn die de behandeling van hartritmestoornissen bevordert.
Experimenteren met een virtueel hart
Omdat het hart zich midden in de borstkas bevindt, is het niet vanzelfsprekend om de elektrische signalen ervan rechtstreeks in beeld te brengen. Een digitaal gesimuleerd hart biedt hiervoor een oplossing: de eigenschappen van het hartweefsel zijn exact gekend en volledig aanpasbaar, waardoor je precies kunt nagaan wat het effect is van bijvoorbeeld littekenweefsel op de gemeten signalen. Klinisch opgemeten signalen kunnen vervolgens vergeleken worden met deze gesimuleerde signalen, wat kan leiden tot een betere diagnose.
Hoe breng je een hartritmestoornis in kaart?
Zoals veel mensen weten, is de eerste stap bij hartziekten een elektrocardiogram (ECG), waarbij elektroden op de huid de elektrische signalen van het hart opmeten. Het nadeel is dat deze signalen eerst door ander weefsel moeten reizen voordat ze de elektrode bereiken en dat de exacte locatie op het hart waar het signaal vandaan komt moeilijk te bepalen is.

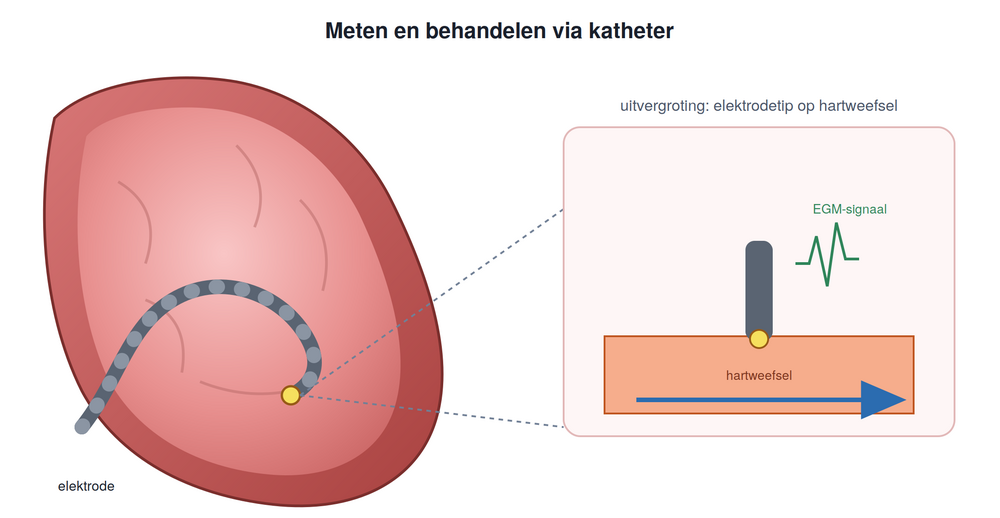

Bij het behandelen van hartritmestoornissen wordt hartweefsel waar de elektrische signalen vastlopen weggebrand, zodat de signalen weer het juiste pad volgen. Het is dus belangrijk om te achterhalen waar in het hart de signalen verstoord worden. Daarom gebruiken cardiologen vaak een elektrogram (EGM) om deze procedure te plannen. Hierbij wordt de elektrode via een bloedvat in de lies ingebracht om vervolgens in het hart uit te komen. Zo kan men metingen rechtstreeks op het hart verrichten.
Door op verschillende plaatsen EGM-metingen uit te voeren en te zoeken naar afwijkingen in de signalen, kunnen plaatsen met aangetast weefsel worden opgespoord. Een signaal uit aangetast weefsel zal over het algemeen langer duren, een lagere amplitude hebben, meer asymmetrie vertonen en vaak meerdere pieken hebben. In klinische situaties is er vaak veel ruis op deze signalen omdat de patiënt ademt en het hart klopt, wat betekent dat de elektrode niet altijd even hard op het hartweefsel duwt. Het is dus moeilijk om het weefsel correct onder te verdelen door de signalen visueel te interpreteren.
Artificiële hulp inschakelen
Men kan ook signaalkenmerken, zoals bijvoorbeeld de maximale of minimale amplitude, van het signaal berekenen. Dit resulteert dan in een set van getallen die het signaal kwantitatief beschrijven. Dergelijke kenmerken worden al vaak gebruikt om EGM-signalen te analyseren, maar meestal is deze set erg beperkt. Bovendien onderzoekt men zelden hoeveel informatie elk kenmerk afzonderlijk bevat en of verschillende kenmerken elkaar deels overlappen. Zo beschrijft bijvoorbeeld het bereik van het signaal, gedefinieerd als het verschil tussen maximum en minimum, uiteraard gelijkaardige informatie als het maximum en minimum zelf.
Om dit probleem aan te pakken berekende ik 11 signaalkenmerken voor elk gesimuleerd signaal. Dat zijn een stuk meer kenmerken dan men in de meeste studies gebruikt en 2 van deze kenmerken zijn nog niet eerder op EGM-signalen toegepast. Deze kenmerken kunnen het opgemeten signaal in 11 cijfers kwantificeren. Ik verzamelde signalen voor 5 verschillende scenario's, waarbij in elk scenario de parameters, zoals de breedte en de geleidingssnelheid, gevarieerd werden. Zo ontstond een dataset van 1,7 miljoen EGM-signalen, elk samengevat in elf getallen.
Vervolgens onderzocht ik wat de overlap tussen deze verschillende kenmerken was en of ze gecombineerd konden worden tot een kleinere set getallen. Door de elf kenmerken op een slimme manier te combineren, konden vier nieuwe getallen berekend worden die volstonden om 95% van de informatie te behouden. Met deze vier getallen voorspelde het machine learning-model de lokale geleidingssnelheid met een gemiddelde fout van slechts 1,2%.
Deze resultaten komen uit relatief eenvoudige simulaties zonder ruis. De volgende stap is daarom om te onderzoeken of dezelfde aanpak werkt op complexere simulaties en uiteindelijk op EGM-signalen van echte patiënten. Als dat lukt, kan een kaart van de geleidingssnelheid artsen en onderzoekers helpen om verschillende vormen van aangetast hartweefsel beter van elkaar te onderscheiden. Aangezien hartritmestoornissen vaak voorkomen, kan dit jaarlijks miljoenen mensen helpen.
